Part 1: Oracle cloud database backup service

by Simon Pane on Sep 9, 2015 12:00:00 AM

Getting Started with Oracle Cloud Backups - Oracle Cloud Database Backup Service (ODBS)

This is part 1 of 3 in a series on "Getting Started with Oracle Cloud Backups".

Part 1 covers setting up RMAN to backup directly to the new Oracle Cloud Database Backup Service (ODBS) (part of the Oracle Public Cloud or OPC).
Part 2 covers setting up RMAN to backup directly to the cloud using Amazon Web Services (AWS) Simple Storage Service (S3).
Part 3 compares and contrasts the two services.

Background

If you're looking for easy "off-site" backups of your Oracle databases these days (likely to compliment your onsite backup strategy), fortunately there's a wealth of options for you. Both Amazon Web Services (AWS) and Oracle Cloud Database Backup Service (ODBS) make the process of backing up directly to the cloud fairly easy, meaning you can go from zero to backed-up to the cloud in just a matter of a couple of hours. And both use a dynamic and very affordable "pay-as-you-go" pricing model. So if your boss comes to you one morning and says " we need an off-site backup ASAP!!!" due to whatever reason (regulatory, audit, internal policies, pending volcano explosion in your area, or Godzilla sighting) it's actually quite realistic that you can tell him/her " DONE!" by lunch. Of course there are several dependencies on that, specifically database size, internet upload speed, and change control formalities. And don't forget restore times (downloading backups through the internet) and your RTO. But if your database is 10.2 or higher (any edition including Standard Edition), and your operating system is Linux, Solaris, AIX, HP-UX, or Windows, the process is quite simple. This article provides a quick start for getting up and running with Oracle RMAN backups to the Oracle Database Backup Service for users new to the service and cloud backups.

Backing up to Oracle Public Database Backup Service

Conceptually, backing up to the Oracle Database Backup Service is very simple. Once you have an Oracle Cloud account created, then you just download a RMAN cloud backup library module onto you database server and configure RMAN to use it. This article will dig into those steps in a little more detail. Getting started with the Oracle Database Backup Service is fairly easy. But first it's important to understand that they have two slightly different usage/billing models: "Metered" and "Non-Metered". With the Metered service the storage and data transfer is metered and charged based on "GB/Month" at rates starting at $0.0264 GB/Month for the storage component, with additional costs for outbound data transfer, and request commands. With the non-metered service the price is simply $33 per TB/month with an unlimited number of transfers and requests. Regardless of whether you think that the progressively charged meter rate or the flat non-metered rate is most applicable, the overall cost is extremely low. With no up-front capital costs or licensing costs and a minimal monthly usage charge, the cloud based backup solution really does seem to offer value for the price. Although it should be noted that this is due to the extremely competitive cloud based storage options available these days from competitors at both the enterprise and consumer levels. Backed up data (data-at-rest) is always encrypted (more on that later) and the transfer (data-in-flight) is always secured via HTTPS. And it's protected via 3-way mirroring within the Oracle Data Centers.

Identity Domains

Oracle Cloud introduces a hierarchal logical structure. This starts with the "Oracle Cloud Account", which typically corresponds to the organization or company. Within the "Account" is one or more "Identity Domains". These logical constructs hold one or more unique Oracle cloud services. Users and authentication can be added to and span the identity domains but with unique access to each service. The structure isn't only logical as the identity domains (and the associated services) are correlated with an Oracle Data Center is a specific geographical location. Discover more information about this.

Creating an Oracle Database Backup Service Account

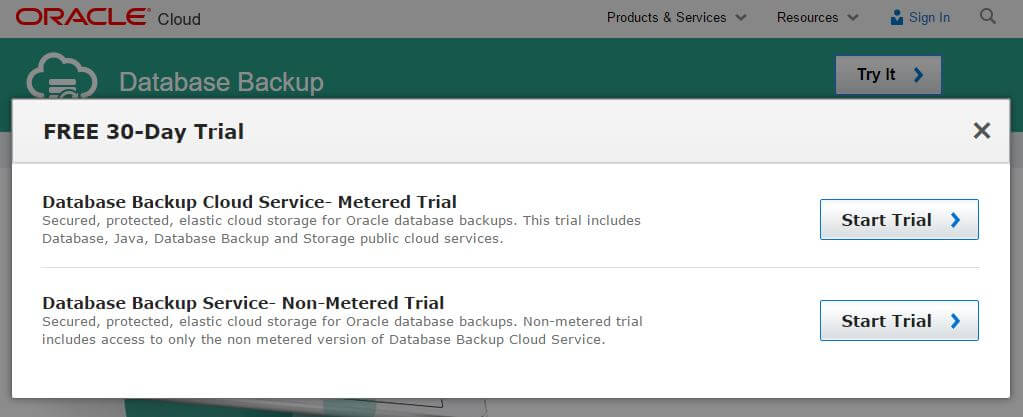

To get started, navigate and choose the " Try It" button for the free 30-day trial, which provides 250GB of free storage during the trail period. Here you'll be promoted to choose which billing model you'll want to continue with after your free-trial expires:

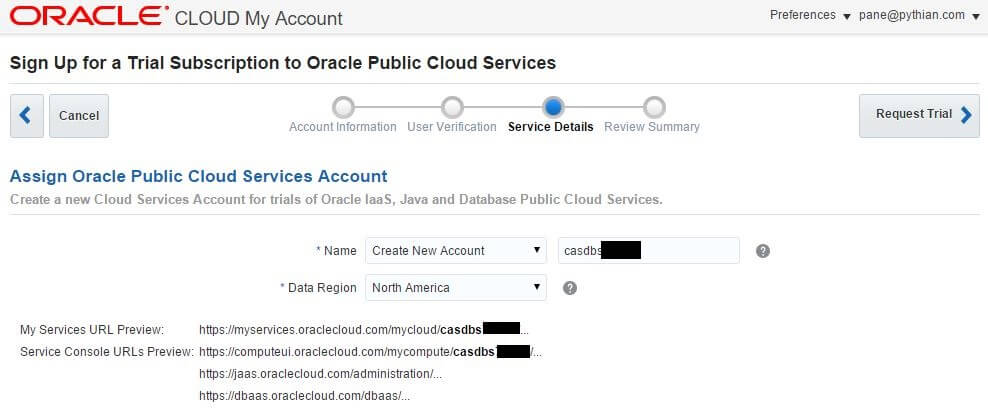

From there you'll be prompted for information such as your name and address and of course your existing "Oracle Account". Note that it is mandatory to first have an " Oracle Account" that anyone can create. Interestingly Oracle also wants to verify your mobile phone number (so they can "verify your identity") as part of the sign-up process unlike most other cloud providers. Presumably, so a sales associate can eventually follow-up with you. The final step is to create a new "Cloud Account" and specify the name for the account. Not to be confused with your "Oracle.com Account" that is used on OTN and My Oracle Support - this one differs:

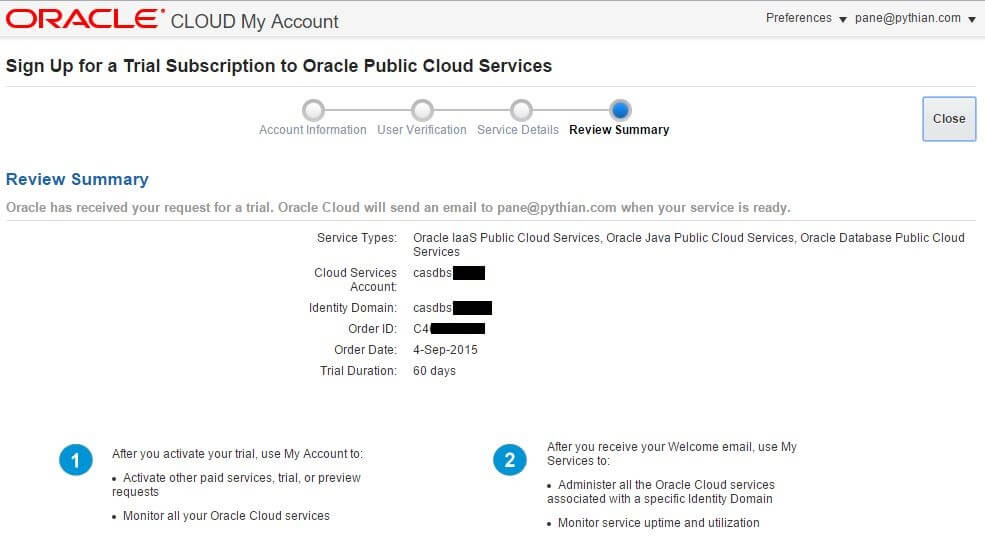

Here's the interesting part: even though the sign-up page mentions a free 30-day trial (see screen-shot earlier), when actually registering the time magically doubles to 60-days:

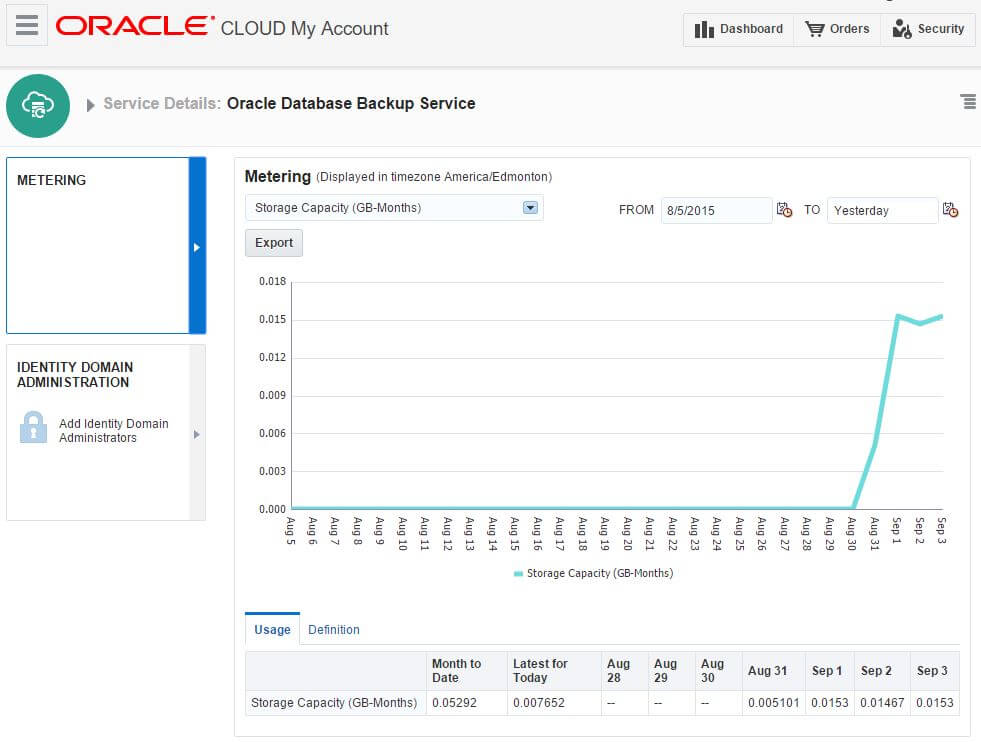

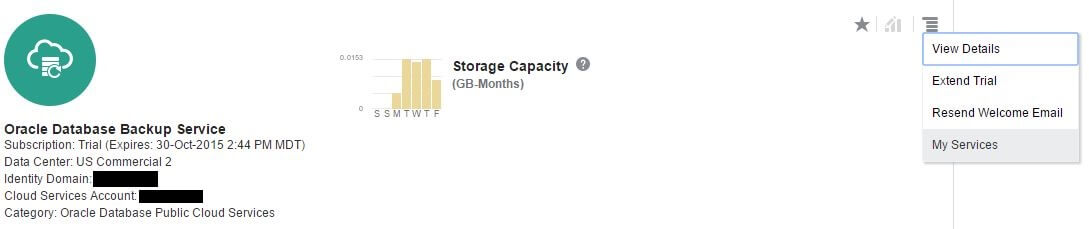

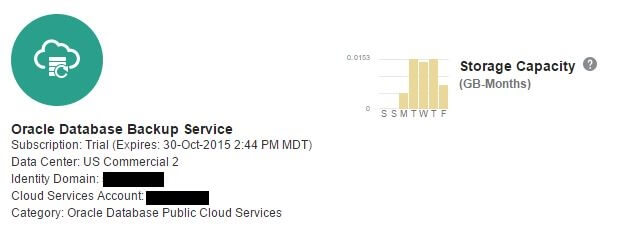

The online documentation also says 30-days yet the service Dashboard (or sometimes called "WebUI" by Oracle) clearly shows 60-days. It's also interesting to note that after signing up specifically for the Database Backup Service, the trial automatically also includes most of the other Oracle Public Cloud offerings including the "Oracle Storage Cloud Service", the "Oracle Compute Cloud Service", the "Oracle Database Cloud Service", the "Oracle Java Cloud Service", and some others. All with the same 60-day trial period. Though it's not obvious when signing up specifically for the "metered ODBS trial", this is sort of mentioned in the online documentation:

"There are no specific trials for Oracle Database Backup Service. When you request a trial of Oracle Database Backup Service, you actually get a trial of Oracle Storage Cloud Service. Oracle Database Backup Service uses Oracle Storage Cloud Service containers to store cloud backups."

Hence, if you're planning to try these different services using the free-trials serially, you're out of luck. You get the one 60-day window for all services running in parallel. But you can start a new trial under a separate & new identity domain. After submitting, the order should take less than an hour to complete after which you'll receive an email with further details. This is where it gets a little confusing. You now have an "Oracle.com Account" used for OTN, MOS, etc., which is based on your email address and has a password as well as an "Oracle Cloud Administrator Account". This is also based on that same email address but has a different password (temporary password is in the email). Log on to your Oracle Cloud account as logging in and navigating from cloud.oracle.com is confusing.

Creating Users

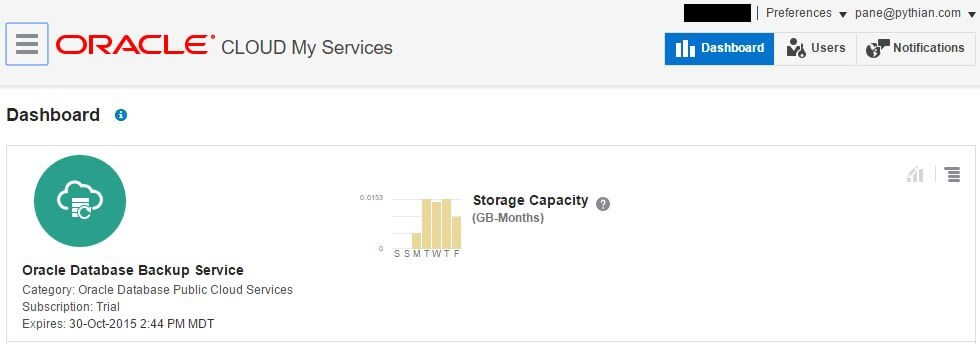

Creating individual users or credentials to use with the RMAN backup through secured wallet files is not at all obvious at first (unlike the competitive offering from Amazon Web Services, which is discussed in the next article in this series). From the main dashboard at this point it's not simple to setup credentials to be used specifically and exclusively by the RMAN backup scripts. Instead by pressing the "Security" button in the top right you can add additional administrators to your Oracle Cloud account, but each is tied to an Oracle.com account. The trick is that you need to navigate into the dashboard specific for the identity domain! One way to do this is to find the Backup Service from the main dashboard, click on the menu option on the far right and choose "My Services":

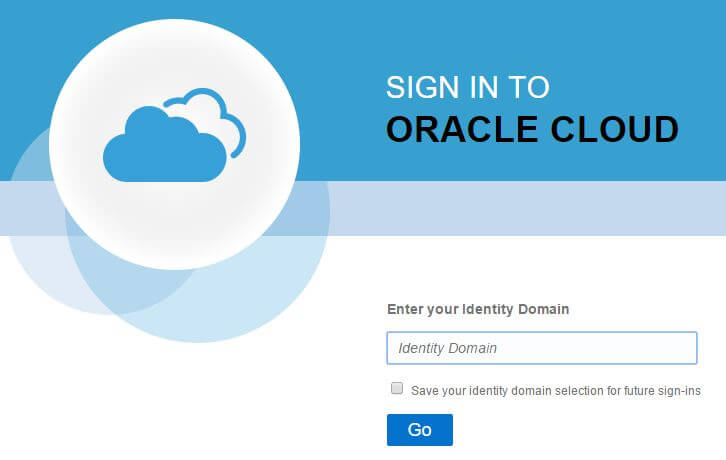

You'll then be prompted with a new login window specific to the Identity Domain:

Specify, the required Identity Domain or the one chosen (or default one used) when signing up - this is also in your welcome email that can be re-sent from the same menu. After specifying the Identity Domain, log in using your Oracle Cloud Account credentials, not your Oracle.com account credentials (even though the two emails are the same)! The Identity Domain dashboard looks almost identical to the main Oracle Cloud dashboard, though one noticeable exception is that there's now a "Users" button along the top:

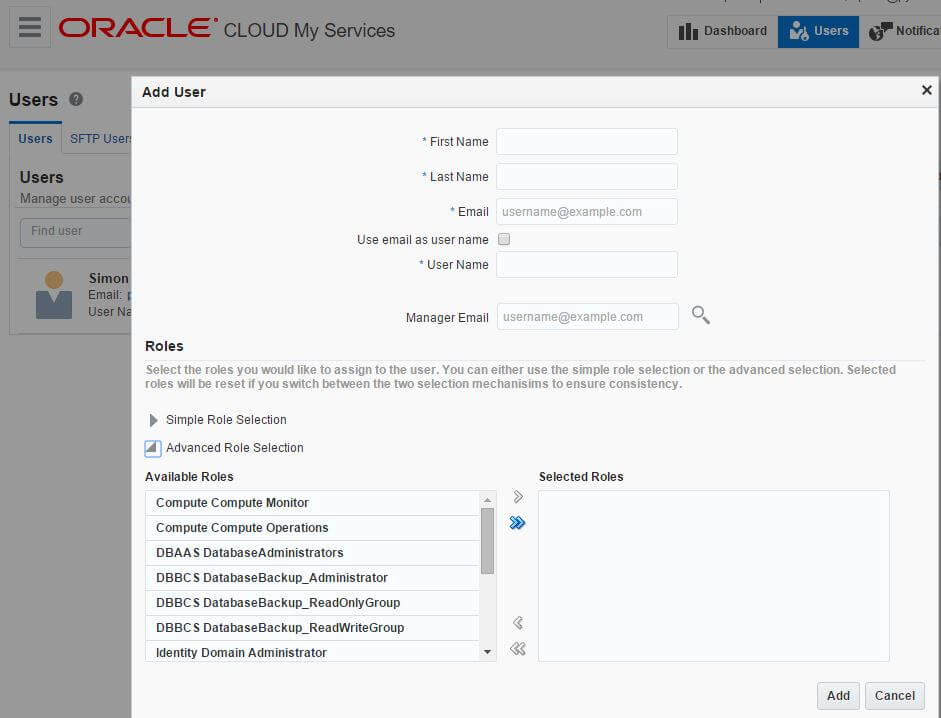

From here we can add new users and assign them specific roles such as the ability to read, write, or administer database backups:

However the disadvantage here is that these are actual "users" and not just keys and secure credentials as Amazon Web Services Identity Access Module provides.

Installing the "Oracle Database Cloud Backup Module"

To start using the service with RMAN, you'll first need to download and install the Oracle Database Cloud Backup Module into each Oracle Home. The process is easy enough: start by downloading the installer zip file and then copying the enclosed Java JAR file to your database server. This is a generic installer which will determine the database version and OS platform/release and will install the appropriate library module. The key dependency is Java which you will already have in the Oracle home. Installation is simple and required as mandatory arguments:

The service name for the ODBS account (which is actually "Storage" even though ODBS doesn't count against OPC Storage).
The identity domain for the ODBS account.
The user name for the ODBS account (not the Oracle.com user).
The password for the ODBS account (not the Oracle.com user's password).
The location for the secure wallet file which stores the ODBS credentials.

Other options such as proxy server details can also be specified. Storing the library in the $ORACLE_HOME/lib directory (specified via the "libDir" argument) is recommended. Details of all options and arguments can be found in the README file or by running the Java JAR file without any arguments. Example of installation:

$ java -jar opc_install.jar \
 > -serviceName Storage \
 > -identityDomain ************ \
 > -opcId 'pane@pythian.com' \
 > -opcPass '*****' \
 > -walletDir $ORACLE_HOME/dbs/opc_wallet \
 > -libDir $ORACLE_HOME/lib
 Oracle Database Cloud Backup Module Install Tool, build 2015-05-12
 Oracle Database Cloud Backup Module credentials are valid.
 Oracle Database Cloud Backup Module wallet created in directory /u01/app/oracle/product/12.1.0/dbhome_2/dbs/opc_wallet.
 Oracle Database Cloud Backup Module initialization file /u01/app/oracle/product/12.1.0/dbhome_2/dbs/opcCDB121.ora created.
 Downloading Oracle Database Cloud Backup Module Software Library from file opc_linux64.zip.
 Downloaded 23169388 bytes in 34 seconds. Transfer rate was 681452 bytes/second.
 Download complete.

After running, the appropriate library file is downloaded, the configuration file created, and a secure wallet file (with the credentials) created:

$ ls -ltr $ORACLE_HOME/lib | tail -1
 -rw-r--r--. 1 oracle oinstall 72062283 Sep 4 11:35 libopc.so

 $ ls -ltr $ORACLE_HOME/dbs | tail -1
 -rw-r--r--. 1 oracle oinstall 183 Sep 4 11:35 opcCDB121.ora

 $ cat $ORACLE_HOME/dbs/opcCDB121.ora
 OPC_HOST=https://************.storage.oraclecloud.com/v1/Storage-************
 OPC_WALLET='LOCATION=file:/u01/app/oracle/product/12.1.0/dbhome_2/dbs/opc_wallet CREDENTIAL_ALIAS=storage_opc'

 $ ls -l $ORACLE_HOME/dbs/opc_wallet
 -rw-r--r--. 1 oracle oinstall 10196 Sep 4 11:35 cwallet.sso

There are other optional customizations that can be added to the configuration file (discussed later), but at this point the initial configuration is complete and RMAN backups to the ODBS can be made.

Using with RMAN

Actually writing the backups to the ODBS is now as simple as configuring and backing up to the SBT_TAPE backup device. For example, with all RMAN "CONFIGURE" parameters set to their default values, to backup using ODBS in a single RMAN run block without any permanent configuration changes we can try:

RMAN> run {
 2> allocate channel odbs type sbt
 3> PARMS='SBT_LIBRARY=libopc.so,SBT_PARMS=(OPC_PFILE=/u01/app/oracle/product/11.2.0/dbhome_1/dbs/opcORA11G.ora)';
 4> backup tablespace users;
 5> }

 allocated channel: odbs
 channel odbs: SID=21 device type=SBT_TAPE
 channel odbs: Oracle Database Backup Service Library VER=3.15.1.16

 Starting backup at 04-SEP-15
 channel odbs: starting full datafile backup set
 channel odbs: specifying datafile(s) in backup set
 input datafile file number=00006 name=/u01/app/oracle/oradata/CDB121/users01.dbf
 channel odbs: starting piece 1 at 04-SEP-15
 released channel: odbs
 RMAN-00571: ===========================================================
 RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
 RMAN-00571: ===========================================================
 RMAN-03009: failure of backup command on odbs channel at 09/04/2015 13:11:08
 ORA-27030: skgfwrt: sbtwrite2 returned error
 ORA-19511: non RMAN, but media manager or vendor specific failure, error text:
  KBHS-01602: backup piece 0kqgaeut_1_1 is not encrypted

 RMAN>

This error is not unexpected and brings us to a unique feature of the ODBS - backup encryption is mandatory. RMAN backups to disk require the Advanced Security Option in order to use encryption but RMAN backups using the "Oracle Secure Backup SBT interface" does not. Similarly, the "Oracle Database Cloud Backup Module" is effectively just a customized version of the Oracle Secure Backup SBT interface and also does not require the Advanced Security Option. The required encryption can be implemented one of these ways:

Password-based encryption - simple but requires the password to be entered manually on backup and restore.
Transparent encryption where the encryption password is stored in an Oracle wallet.
Dual-mode encryption where either a wallet or supplied password can be used.

Oracle recommends transparent encryption using a wallet and considers it more secure as no passwords are required. However, using password encryption just for simplicity to start, we only have to add one simple RMAN command prior to the run block:

RMAN> SET ENCRYPTION ON IDENTIFIED BY passw0rd ONLY;

 executing command: SET encryption
 using target database control file instead of recovery catalog

 RMAN> run {
 2> allocate channel odbs type sbt
 3> PARMS='SBT_LIBRARY=libopc.so,SBT_PARMS=(OPC_PFILE=/u01/app/oracle/product/11.2.0/dbhome_1/dbs/opcORA11G.ora)';
 4> backup tablespace users;
 5> }

 allocated channel: odbs
 channel odbs: SID=272 device type=SBT_TAPE
 channel odbs: Oracle Database Backup Service Library VER=3.15.1.16

 Starting backup at 04-SEP-15
 channel odbs: starting full datafile backup set
 channel odbs: specifying datafile(s) in backup set
 input datafile file number=00006 name=/u01/app/oracle/oradata/CDB121/users01.dbf
 channel odbs: starting piece 1 at 04-SEP-15
 channel odbs: finished piece 1 at 04-SEP-15
 piece handle=0mqgahd0_1_1 tag=TAG20150904T135232 comment=API Version 2.0,MMS Version 3.15.1.16
 channel odbs: backup set complete, elapsed time: 00:00:15
 Finished backup at 04-SEP-15

 Starting Control File and SPFILE Autobackup at 04-SEP-15
 piece handle=c-3847224663-20150904-00 comment=API Version 2.0,MMS Version 3.15.1.16
 Finished Control File and SPFILE Autobackup at 04-SEP-15
 released channel: odbs

 RMAN> list backup of tablespace users;
 List of Backup Sets
 ===================

 BS Key Type LV Size Device Type Elapsed Time Completion Time
 ------- ---- -- ---------- ----------- ------------ ---------------
 18 Full 1.50M SBT_TAPE 00:00:06 04-SEP-15
  BP Key: 18 Status: AVAILABLE Compressed: NO Tag: TAG20150904T135232
  Handle: 0mqgahd0_1_1 Media: ************.storage.oraclecloud.com/v1/Storage-************/oracle-da
  List of Datafiles in backup set 18
  File LV Type Ckp SCN Ckp Time Name
  ---- -- ---- ---------- --------- ----
  6 Full 1394781 04-SEP-15 /u01/app/oracle/oradata/CDB121/users01.dbf

 RMAN>

Voila: Encrypted backups straight to the cloud via ODBS. Additional commands such as RESTORE, RECOVER, CROSSCHECK, DELETE BACKUP, etc. all work in exactly the same way - the ODBS simply appears to RMAN as a SBT_TAPE device. Now if we want all backups to use the ODBS without having to manually specify the SBT device parameters in a channel allocation each time we can simply persist the configuration using the CONFIGURE command:

RMAN> CONFIGURE CHANNEL DEVICE TYPE sbt
 2> PARMS='SBT_LIBRARY=libopc.so,SBT_PARMS=(OPC_PFILE=/u01/app/oracle/product/11.2.0/dbhome_1/dbs/opcORA11G.ora)';

 new RMAN configuration parameters:
 CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' PARMS 'SBT_LIBRARY=libopc.so,SBT_PARMS=(OPC_PFILE=/u01/app/oracle/product/11.2.0/dbhome_1/dbs/opcORA11G.ora)';
 new RMAN configuration parameters are successfully stored

 RMAN> SET ENCRYPTION ON IDENTIFIED BY passw0rd ONLY;

 executing command: SET encryption

 RMAN> backup device type sbt tablespace users;

 Starting backup at 04-SEP-15
 allocated channel: ORA_SBT_TAPE_1
 channel ORA_SBT_TAPE_1: SID=255 device type=SBT_TAPE
 channel ORA_SBT_TAPE_1: Oracle Database Backup Service Library VER=3.15.1.16
 channel ORA_SBT_TAPE_1: starting full datafile backup set
 channel ORA_SBT_TAPE_1: specifying datafile(s) in backup set
 input datafile file number=00006 name=/u01/app/oracle/oradata/CDB121/users01.dbf
 channel ORA_SBT_TAPE_1: starting piece 1 at 04-SEP-15
 channel ORA_SBT_TAPE_1: finished piece 1 at 04-SEP-15
 piece handle=0oqgaidh_1_1 tag=TAG20150904T140953 comment=API Version 2.0,MMS Version 3.15.1.16
 channel ORA_SBT_TAPE_1: backup set complete, elapsed time: 00:00:15
 Finished backup at 04-SEP-15

 Starting Control File and SPFILE Autobackup at 04-SEP-15
 piece handle=c-3847224663-20150904-01 comment=API Version 2.0,MMS Version 3.15.1.16
 Finished Control File and SPFILE Autobackup at 04-SEP-15

 RMAN>

RMAN provides various encryption algorithms (listed in the V$RMAN_ENCRYPTION_ALGORITHMS view) and all are applicable to the ODBS backups. Another marketed benefit of ODBS is compression. "Basic Compression" (CONFIGURE COMPRESSION ALGORITHM 'BASIC';) can be used for all RMAN backups without the requirement for additional licensing ( Source).The Oracle Advanced Compression Option allows for RMAN compression to include the additional compression levels "HIGH", "MEDIUM", and "LOW". High compresses the most and results in the minimal amount of data transferred through the network (likely ideal for backing up through the internet), but at the expense of higher local CPU resources. Therefore, a few additional permutations of the sample backup would be:

RMAN> backup as compressed backupset device type sbt tablespace users;

 Starting backup at 04-SEP-15
 using channel ORA_SBT_TAPE_1
 channel ORA_SBT_TAPE_1: starting compressed full datafile backup set
 channel ORA_SBT_TAPE_1: specifying datafile(s) in backup set
 input datafile file number=00006 name=/u01/app/oracle/oradata/CDB121/users01.dbf
 channel ORA_SBT_TAPE_1: starting piece 1 at 04-SEP-15
 channel ORA_SBT_TAPE_1: finished piece 1 at 04-SEP-15
 piece handle=0qqgajcv_1_1 tag=TAG20150904T142639 comment=API Version 2.0,MMS Version 3.15.1.16
 channel ORA_SBT_TAPE_1: backup set complete, elapsed time: 00:00:15
 Finished backup at 04-SEP-15

 Starting Control File and SPFILE Autobackup at 04-SEP-15
 piece handle=c-3847224663-20150904-02 comment=API Version 2.0,MMS Version 3.15.1.16
 Finished Control File and SPFILE Autobackup at 04-SEP-15

 RMAN> CONFIGURE COMPRESSION ALGORITHM 'HIGH';

 new RMAN configuration parameters:
 CONFIGURE COMPRESSION ALGORITHM 'HIGH' AS OF RELEASE 'DEFAULT' OPTIMIZE FOR LOAD TRUE;
 new RMAN configuration parameters are successfully stored

 RMAN> backup as compressed backupset device type sbt tablespace users;

 Starting backup at 04-SEP-15
 using channel ORA_SBT_TAPE_1
 channel ORA_SBT_TAPE_1: starting compressed full datafile backup set
 channel ORA_SBT_TAPE_1: specifying datafile(s) in backup set
 input datafile file number=00006 name=/u01/app/oracle/oradata/CDB121/users01.dbf
 channel ORA_SBT_TAPE_1: starting piece 1 at 04-SEP-15
 channel ORA_SBT_TAPE_1: finished piece 1 at 04-SEP-15
 piece handle=0sqgajg1_1_1 tag=TAG20150904T142817 comment=API Version 2.0,MMS Version 3.15.1.16
 channel ORA_SBT_TAPE_1: backup set complete, elapsed time: 00:00:15
 Finished backup at 04-SEP-15

 Starting Control File and SPFILE Autobackup at 04-SEP-15
 piece handle=c-3847224663-20150904-03 comment=API Version 2.0,MMS Version 3.15.1.16
 Finished Control File and SPFILE Autobackup at 04-SEP-15

 RMAN>

Comparing the backup performance and compression of FULL database backups using:

Uncompressed backup to DISK
Uncompressed backup to ODBS
COMPRESSION='BASIC' to ODBS
COMPRESSION='HIGH' to ODBS

SQL> COLUMN status FORMAT a10
 SQL> COLUMN input_bytes_display HEADING INPUT_BYTES FORMAT a14
 SQL> COLUMN output_bytes_display HEADING OUTPUT_BYTES FORMAT a14
 SQL> COLUMN input_bytes_per_sec_display HEADING INPUT_BPS FORMAT a14
 SQL> COLUMN output_bytes_per_sec_display HEADING OUTPUT_BPS FORMAT a14
 SQL> COLUMN time_taken_display HEADING TIME_TAKEN FORMAT a10
 SQL>
 SQL> SELECT status, input_type,
  2 compression_ratio,
  3 input_bytes_display, output_bytes_display,
  4 input_bytes_per_sec_display, output_bytes_per_sec_display,
  5 time_taken_display
  6 FROM v$rman_backup_job_details;

 STATUS INPUT_TYPE COMPRESSION_RATIO INPUT_BYTES OUTPUT_BYTES INPUT_BPS OUTPUT_BPS TIME_TAKEN
 ---------- ----------- ----------------- -------------- -------------- -------------- -------------- ----------
 COMPLETED DB FULL 1.2824343 4.53G 3.53G 22.08M 17.21M 00:03:30
 COMPLETED DB FULL 1.28192371 4.53G 3.53G 400.65K 312.54K 03:17:34
 COMPLETED DB FULL 5.39639373 4.46G 845.75M 1.22M 232.00K 01:02:13
 COMPLETED DB FULL 6.44232804 4.46G 708.75M 1.88M 299.41K 00:40:24

 10 rows selected.

 SQL>

Clearly the compression helps significantly in terms of output bytes and the elapsed backup time. And the ODBS unique advantage of being able to specify COMPRESSION=‘HIGH’ makes a noticeable difference on my system at the expense of CPU resources. But drilling into the details of this test any further is of little value as there are so many site and system specific variables in play. Specifically:

Database backup size
Nature and compressibility of the data
Backup parallelism or number of channels chosen
Internet upload bandwidth
Available CPU resources and headroom for compressing

So, similar tests should be performed on each system to find the sweet spot between compression, space used, and backup elapsed time.

Additional Considerations

Some more advanced options would included generating a detailed trace file of the OPC module by adding the "_OPC_TRACE_LEVEL=100" parameter to configuration (.ora) file. The resulting trace file is created in the ADR rdbms trace directory. Other documented parameters that can be included in the config file are:

OPC_PFILE
 OPC_PROXY
 OPC_CONTAINER
 OPC_CHUNK_SIZE

Further, searching the OPC library module shows many additional hidden parameters (an examination of each is outside of the scope of this article):

$ strings $ORACLE_HOME/lib/libopc.so | grep ^_OPC_
 _OPC_ALLOCBUF_DISABLE
 _OPC_ACCESSLOG_RETENTION_TIME
 _OPC_SEND_BUF_SIZE
 _OPC_RECV_BUF_SIZE
 _OPC_SDU_SIZE
 _OPC_TDU_SIZE
 _OPC_REUSE_CONNECTION
 _OPC_SESSION_RETENTION_TIME
 _OPC_CHECKER_RETENTION_TIME
 _OPC_PURGE_LIMIT
 _OPC_CLEANER
 _OPC_CLEANER_RETENTION_TIME
 _OPC_RUN_CLEANER
 _OPC_ACCESSLOG_CLEANER
 _OPC_ACCESSLOG
 _OPC_CONNECT_TIMEOUT
 _OPC_RESPONSE_TIMEOUT
 _OPC_SEND_TIMEOUT
 _OPC_RETRY_WAIT_TIME
 _OPC_UPLOAD_DELAY
 _OPC_EVENT
 _OPC_TRACE_LEVEL
 _OPC_VALIDATE_CHUNK
 _OPC_100_CONTINUE
 _OPC_DEFERRED_DELETE
 _OPC_AUTH_SCHEME
 _OPC_LOG_BUCKET
 _OPC_REDIRECT
 _OPC_BUFFER_WRITE
 _OPC_BUFFER_READ
 _OPC_USE_IPV6
 _OPC_NO_SSL
 _OPC_VALIDATE_CERT

Oracle Database Standard Edition

Oracle Database Standard Edition historically did not support backup encryption, yet ODBS supports Standard Edition and with ODBS encryption is mandatory. Oracle created the following bug to document that contradiction:

"Bug 18339044 - Support encryption on oracle public cloud sbt library in standard edition (Doc ID 18339044.8)"

A one-off patch for this bug is available for Oracle database 10.2.0.5 onward on all ODBS supported platforms. And fortunately the patch can be applied without outage. However depending on how up to date you are with PSU patching this may be a moot point as this bug fix is included with the following PSUs or server patch sets/bundles:

12.1.0.2 (Server Patch Set) 11.2.0.4.5 (Jan 2015) Database Patch Set Update (DB PSU) 11.2.0.4 Bundle Patch 6 for Exadata Database 11.2.0.3 Bundle Patch 23 for Exadata Database 11.2.0.4 Patch 12 on Windows Platforms 11.2.0.3 Patch 33 on Windows Platforms

Viewing data usage

Viewing the amount of data used is quite simple from the Oracle Cloud Dashboard:

Note that this storage is not reflected as part of the "Oracle Storage Cloud Service" - they are treated as separate. Drilling down into the "Oracle Database Backup Service" details:

Some interesting observations from this:

The data is not real-time as the report can only show up to the prior day ("yesterday"). It doesn't show the current day's activities.
There's no further drill down, no way to tell which files/backup pieces or databases (if backing up many) are consuming the space.
There's not much else in the way of details or anything else we can do from the web dashboard interface except for exporting the usage numbers graphed to a CSV file. We need to use other mechanisms (including RMAN commands) to obtain further details.

Note that the above screen-shots are from the Oracle Cloud Account level, which shows all Identity Domains for the account. It's also possible to log into the dashboard for just a single Identity Domain. However, currently this doesn't add any additional functionality or level of detail through the web interface.

Conclusion

The Oracle Database Backup Service definitely is a simple, low-cost, and effective off-site backup solution. No upfront costs and extremely reasonable metered usage rates make it extremely competitive. And forcing backups to the service to be encrypted (and transferred via HTTPS), while the keeping the encryption key in a wallet maintained on your on-premise device makes the configuration secure. And protected as long as the wallet file is backed up and secured separately. Oracle's triple-mirroring of the data in their data centers is nice, however there's no option to choose which of the 19 Oracle data centers is used. The position of the "special-use licensing" for the encryption and compression backup options at no additional cost may not be as much of a unique advantage as initially thought. Backup encryption to competing cloud services through the Oracle Secure Backup SBT module is already permitted as is "BASIC" level backup compression for all RMAN backups, both without additional licenses (specifically the Advanced Security Option or the Advanced Compression Option). Whether the advanced compression options provided as part of the "special-use licensing", such as "HIGH" compression is of significant value will vary on a case-by-case or site-by-site basis. But the key difference on the licensing front is that there is no requirement for the Oracle Secure Backup module which is separately licensed per RMAN channel ( Source). This is likely the reason why the product name, modules, etc make no reference of "Oracle Secure Backup" or OSB. DYI solutions of backing up to disk, then encrypting and possibly compressing those RMAN backup pieces separatel

Topics: Oracle Microsoft SQL Server Technical Track

No Comments Yet

Let us know what you think

Share this
